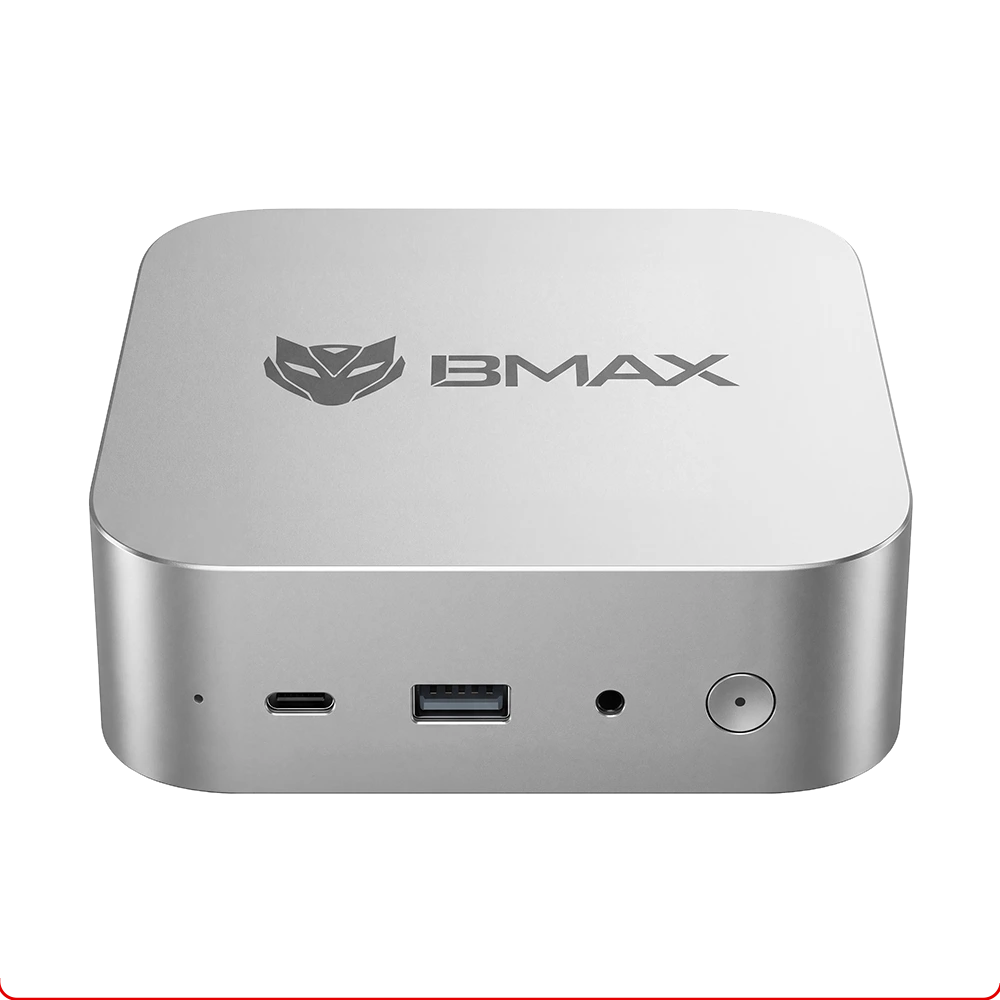

BMAX B7A Plus Mini PC | AMD Ryzen 5 6600H

BMAX B7A Plus Mini PC | AMD Ryzen 5 6600H

$329.99 USD ~~$479.99 USD~~

Gratuit expédition Livraison aux États-Unis, dans l'UE, au Japon ou pour les commandes supérieures à 500 $.

Estimated delivery: Oct 24 - Oct 28

Now Only: $219.99 $169.99

03 Hrs

19 Mins

50 Secs

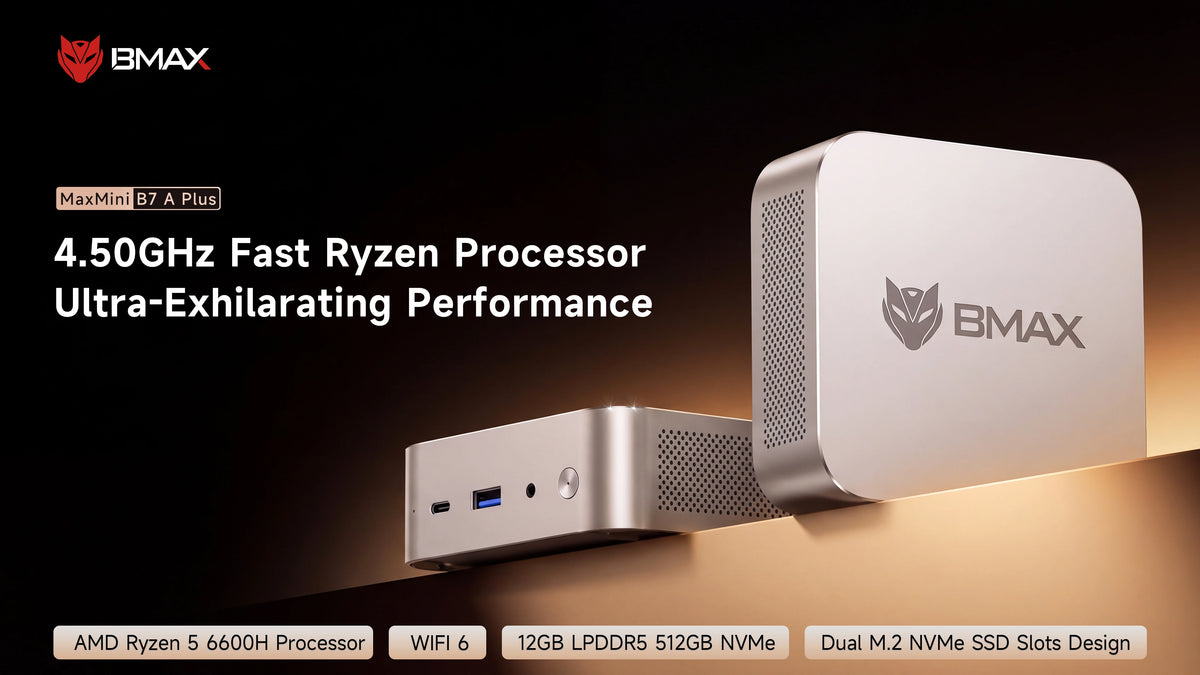

Powerful AMD Ryzen™ Processor — Powered by AMD Ryzen 5 6600H (6 cores, 12 threads, up to 4.5GHz) for exceptional performance in multitasking, office productivity, and entertainment.

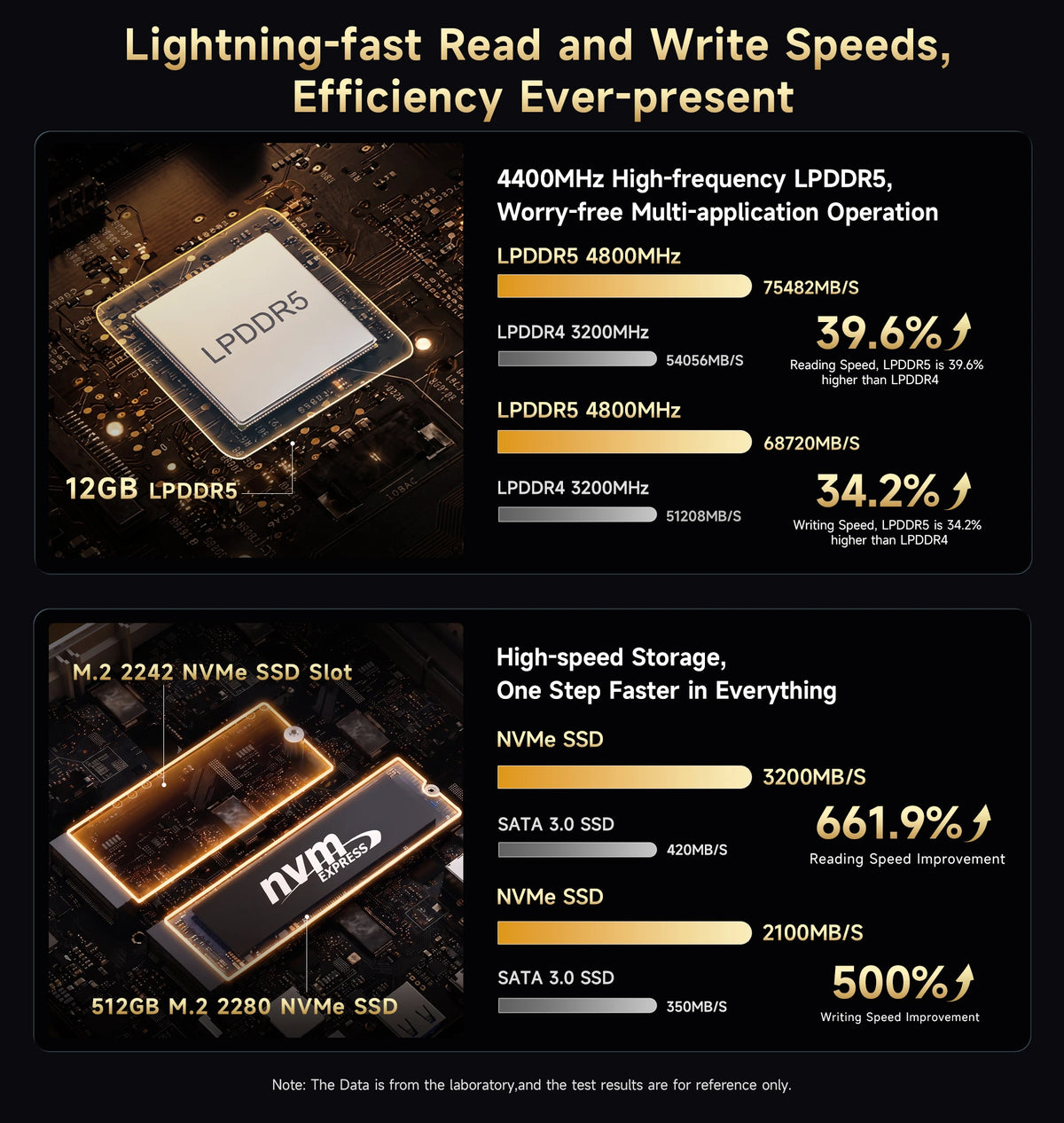

12GB LPDDR5 RAM & 512GB SSD — Equipped with high-frequency 4800MHz onboard memory and a fast M.2 NVMe SSD for lightning-fast application loading and system responsiveness.
AMD Radeon™ 660M Graphics — Delivers impressive integrated graphics performance up to 1.90GHz for 4K video streaming, creative software, and light gaming.
Flexible Storage Expansion — Features dual M.2 slots (one 2280 NVMe and one 2242 NVMe) for easy and rapid storage capacity upgrades.

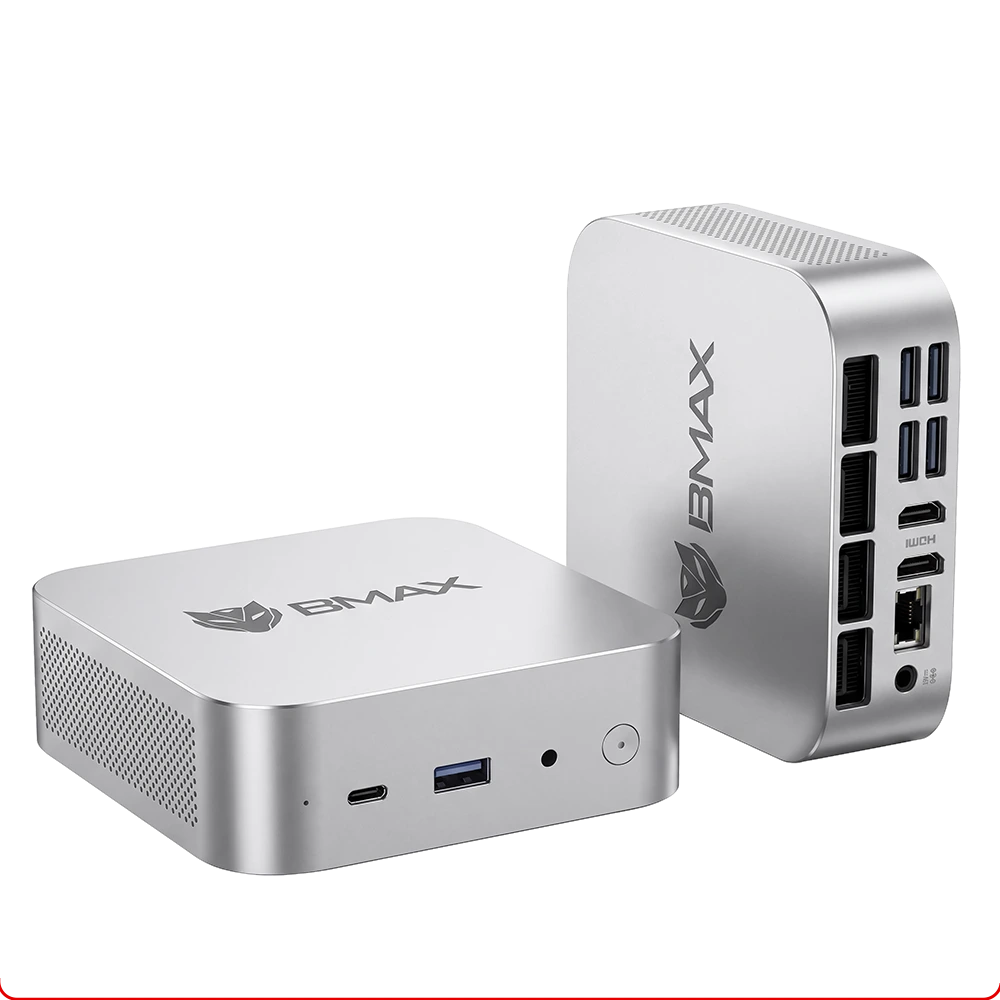

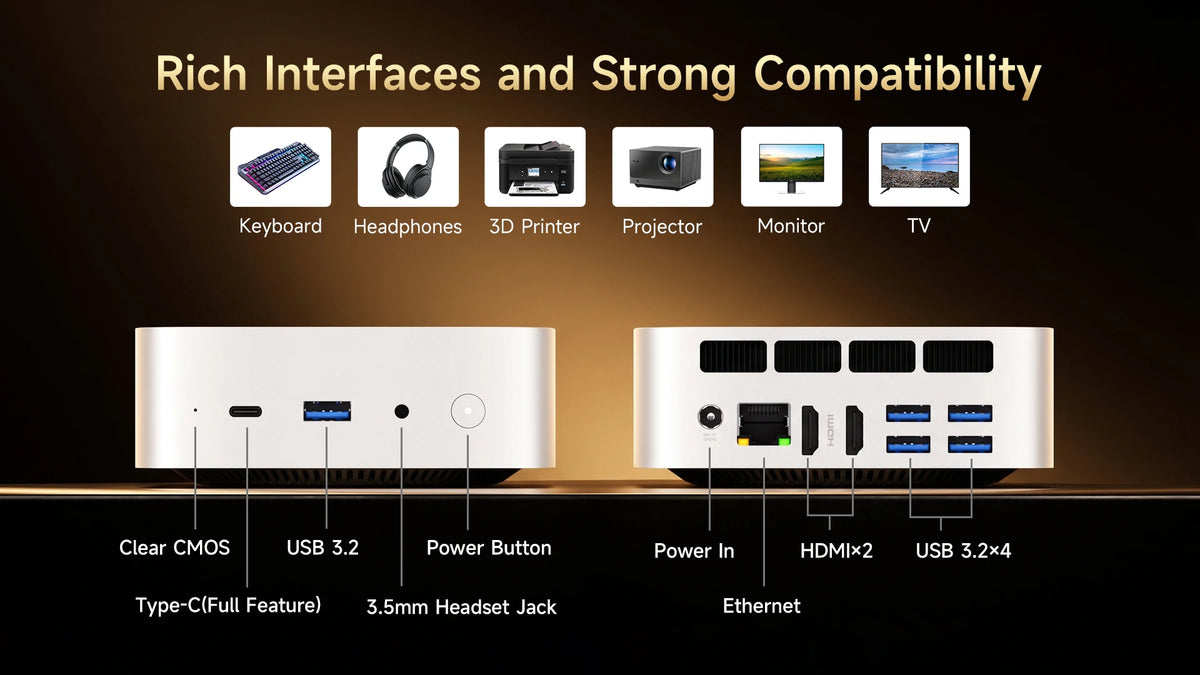

Advanced Connectivity — Loaded with 1Gbps Ethernet, WiFi 6, Bluetooth 5.4, 5× USB 3.2 ports, and triple display support (2× HDMI 2.0 + 1× full-featured Type-C).

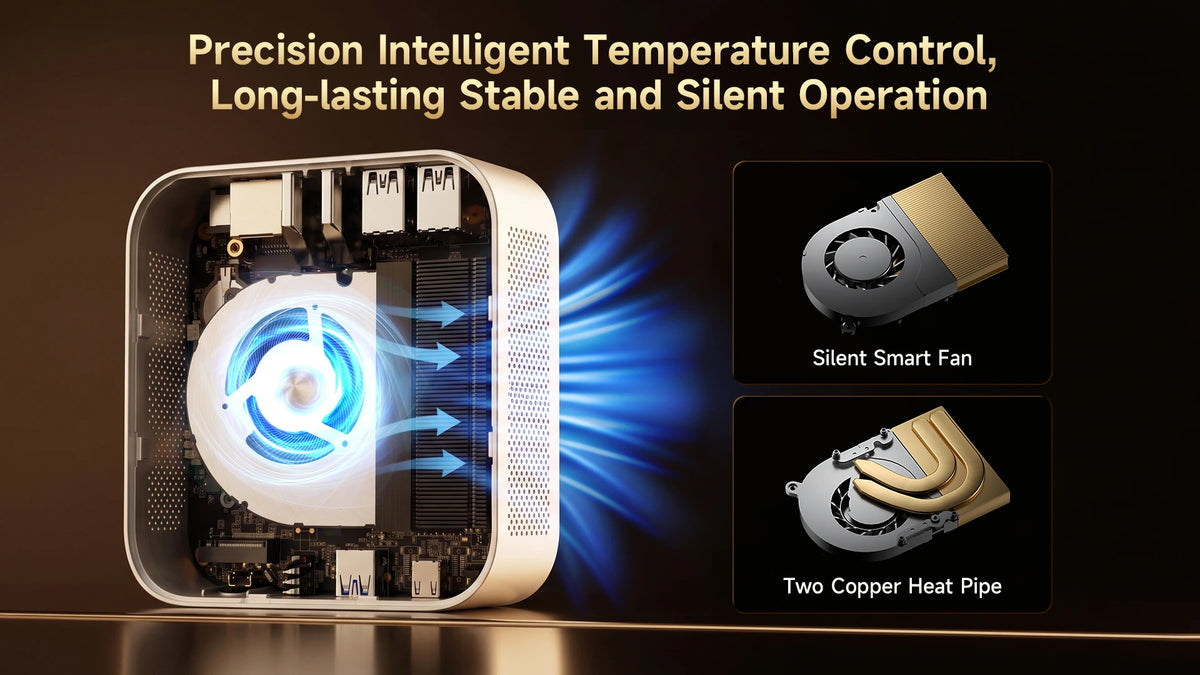

Smart Cooling Solution — Engineered with a smart fan and dual copper heat pipes to maintain stable, long-lasting peak performance.

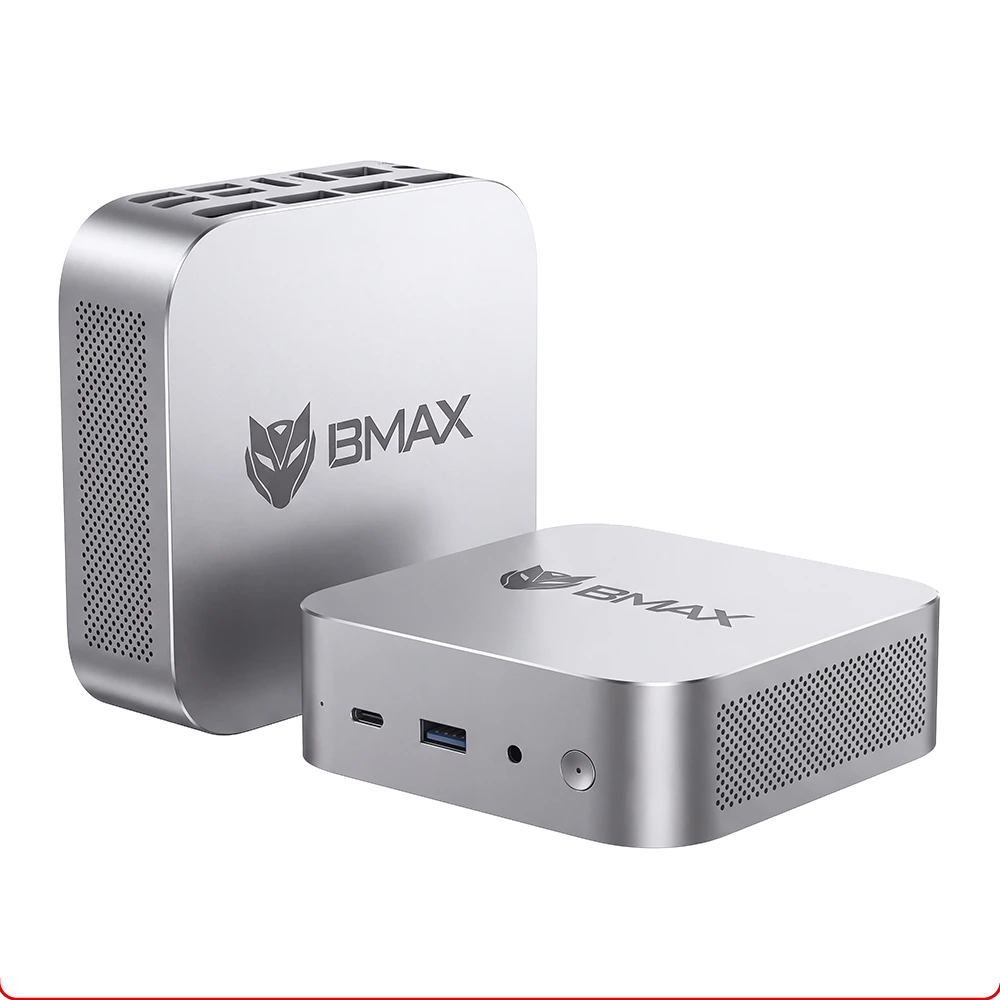

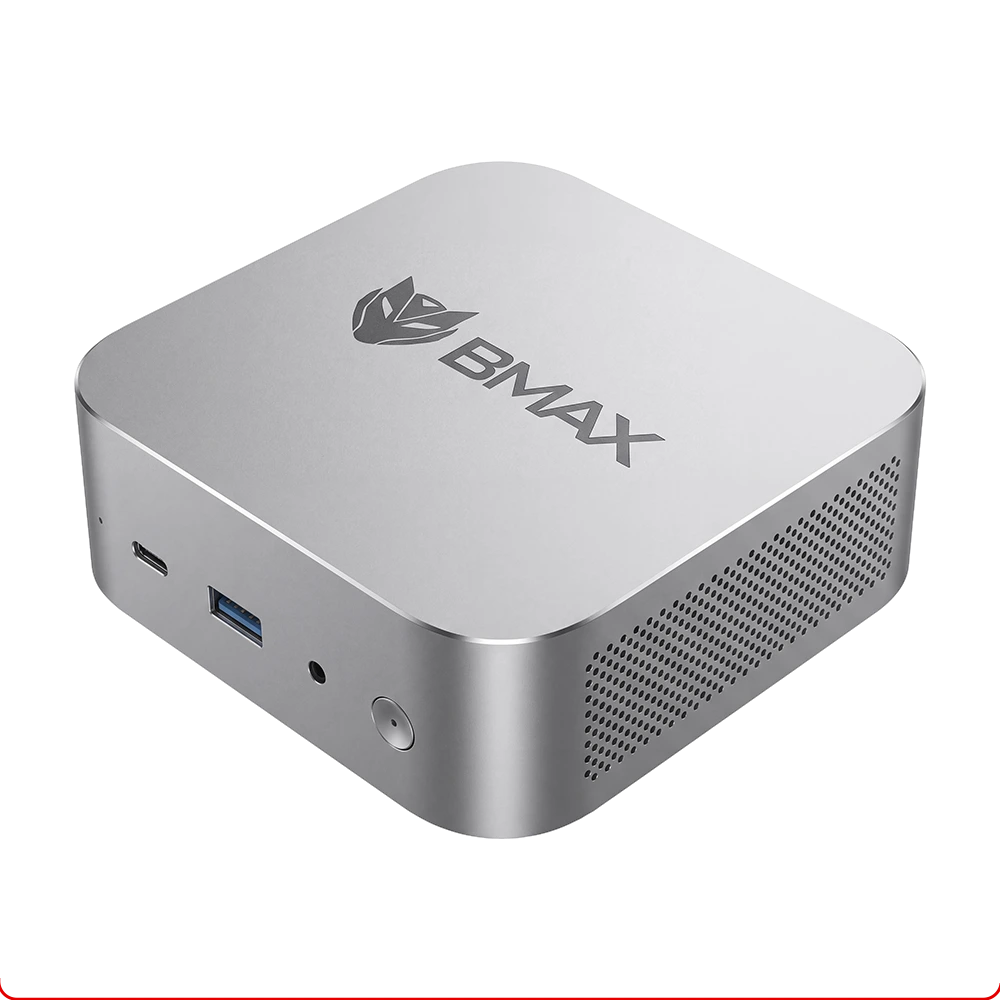

Compact & Sleek Design — Space-saving 113×113×44.5mm body in a sleek Silver finish, weighing only about 355g.
Windows 11 Pro Ready — Pre-installed with Windows 11 Pro, supporting TPM 2.0, Windows 10 and Linux (including Ubuntu) for a secure and professional user experience.

📦 Worldwide Warehouse & Shipping

Tax & Duty Included

🇺🇸 US Address: Ships from US Warehouse — FREE Shipping (US Plug)

🇯🇵 JP Address: Ships from JP Warehouse — FREE Shipping (JP Plug)

🇪🇺 EU/UK Address: Ships from EU Warehouse — FREE Shipping (EU/UK Plug)

🌐 Other Regions: Ships from CN Warehouse — $20 Flat Rate (FREE over $500) (Matching Plug Included)

Local
Inventory

1-Year
Warranty

30-Day
Return

BMAX B7A Plus Mini PC | AMD Ryzen 5 6600H A+

SPECIFICATIONS

Model

BMAX B7A Plus

Product Number (PN)

G7R6

EAN

6937496930242

Processor

AMD Ryzen 5 6600H

Processor Series

Ryzen 6000 Series

Lithography

TSMC 6nm FinFET

Frequency

Base Frequency: 3.3GHz / Burst Frequency: 4.5GHz

Cache

19 MB AMD Smart Cache

Number of Cores & Threads

6 Cores / 12 Threads

Graphics

AMD Radeon 660M

Graphics Max Frequency

1.90 GHz

RAM

12GB LPDDR5 / 4800MHz (Onboard)

Maximum Supported Memory

12GB LPDDR5 / 4800MHz

Storage

512GB M.2 PCI-e (NVMe) SSD / 2280

SSD Slots

M.2 2280 PCI-e (NVMe) ×1, M.2 2242 PCI-e (NVMe) ×1

Ethernet

1Gbps LAN ×1

Wi-Fi

Wi-Fi 6

Bluetooth

Built-in Bluetooth 5.4

Video Outputs

HDMI 2.0 ×2, Type-C (full features) ×1

USB Ports

USB 3.2 ×5, Type-C (full features) ×1

Audio

3.5mm CTIA Stereo Headset Jack ×1

Additional Features

TPM 2.0, Power Button with LED Indicator, Clear CMOS Button

Cooling System

Smart Fan + Dual Copper Heat Pipes

Pre-installed Operating System

Windows 11 Pro

Supported Operating Systems

Windows 11, Windows 10, Linux (including Ubuntu)

Power Input

19V / 3.42A

Power Connector

DC 5.5 × 2.5 × 10mm

Color

Silver

Case Material

Plastic

Dimensions

113 × 113 × 44.5mm (L × W × H)

Net Weight

Approximately 355g

Package Dimensions

239 × 141 × 76mm (L × W × H)

Pieces per Carton

15 PCS

Carton Dimensions

445 × 395 × 255mm (L × W × H)

Included Accessories

Power Adapter, HDMI Cable, Bracket, User Guide

FAQ

What processor does the BMAX B7A Plus use?

The BMAX B7A Plus is powered by the AMD Ryzen 5 6600H processor, featuring 6 cores and 12 threads with base frequency 3.3GHz and burst frequency up to 4.5GHz.

What tasks is the B7A Plus suitable for?

The B7A Plus is ideal for highly efficient daily computing, such as: • Heavy office workloads and multitasking • Graphic design and photo editing • 4K media streaming and playback • Light gaming and entertainment • Home office and workstation setups

What graphics does the B7A Plus have?

The B7A Plus features integrated AMD Radeon 660M graphics with a maximum frequency of 1.90GHz, supporting triple displays and delivering excellent visual performance. Memory & Storage FAQ

How much RAM does the B7A Plus have?

The BMAX B7A Plus comes with 12GB LPDDR5 onboard memory running at 4800MHz. The maximum supported memory is 12GB LPDDR5/4800MHz.

How much storage does the B7A Plus include?

The B7A Plus comes with a 512GB M.2 PCI-e NVMe 2280 SSD.

Can storage be expanded?

Yes. The B7A Plus features dual M.2 slots: one M.2 2280 PCI-e NVMe slot and one M.2 2242 PCI-e NVMe slot for convenient storage expansion. Connectivity FAQ

Does the B7A Plus have Gigabit Ethernet?

Yes. The BMAX B7A Plus includes a 1Gbps Ethernet port for reliable wired internet.

Does it support WiFi and Bluetooth?

Yes. The B7A Plus supports WiFi 6 and built-in Bluetooth 5.4.

What display outputs are available?

The B7A Plus includes: • HDMI 2.0 ×2 • Full-featured USB Type-C ×1 These allow for simultaneous triple-monitor output.

What USB ports does it have?

The B7A Plus is highly expandable, featuring: • USB 3.2 ×5 • Full-featured USB Type-C ×1 • 3.5mm CTIA stereo headset jack ×1 • RJ45 ×1 • Clear CMOS button ×1 Cooling FAQ

How is the B7A Plus cooled?

The BMAX B7A Plus uses a smart fan and dual copper heat pipe cooling system to keep the device running stably and quietly even under heavy loads. Operating System FAQ

What operating system is pre-installed?

The BMAX B7A Plus comes with Windows 11 Pro pre-installed and automatically activated online.

Does the B7A Plus support Linux?

Yes. The B7A Plus supports Linux distributions such as Ubuntu, and also supports Windows 11 and Windows 10.

What system languages are supported?

The system supports 13 languages, including English, French, German, Russian, Spanish, Italian, Portuguese, Japanese, Korean, Simplified Chinese, Traditional Chinese, Arabic, and Thai. Design FAQ

How big is the B7A Plus?

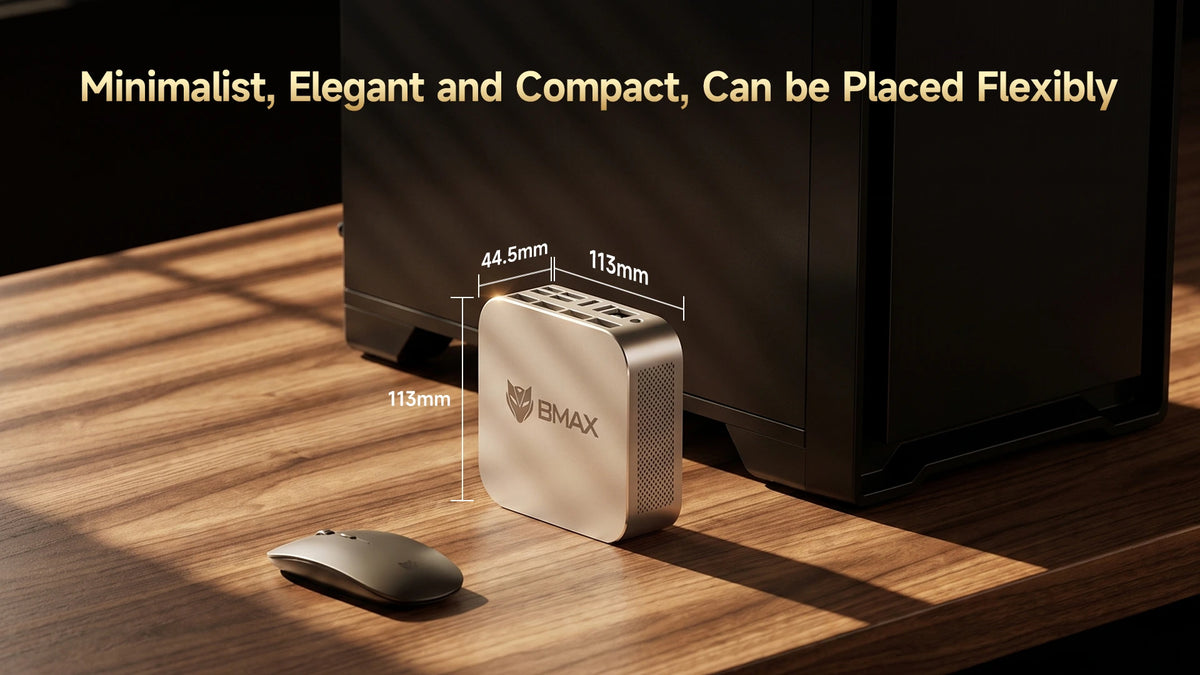

The BMAX B7A Plus features a highly compact design measuring 113 × 113 × 44.5mm (including foot pads).

How much does it weigh?

The mini PC weighs approximately 355g.

What color and material does the B7A Plus have?

The BMAX B7A Plus features a sleek Silver finish. Both the top cover and case are made of plastic.

Does it have a battery?

Yes. It includes a CR2032 lithium metal battery (3V/230mAh) for CMOS. Package FAQ

What is included in the package?

The package includes: • BMAX B7A Plus Mini PC • Power Adapter (19V/3.42A, DC 5.5×2.5×10mm, input 100V-240V) • HDMI Cable ×1 • Bracket ×1 • User Guide / Warranty Card ×1
